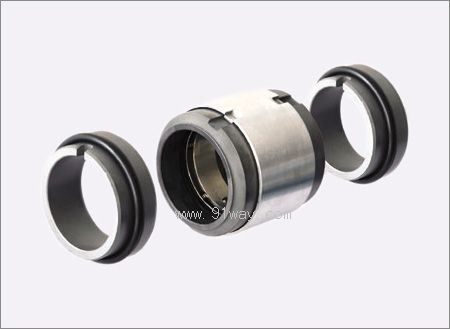

產品名稱： | H74D機械密封 | ||||
| 型號規格： |   放大圖片 |
|||||
| 產品類別： | 常規產品 -- 泵閥管件 -- 機械密封件 | |||||
| |
參考價格： | 廠價直銷 | ||||
| 產品品牌： | 國產 | |||||
| 產品產地： | 上海 | |||||
| |
可供數量： | 批量 | ||||
| 供貨周期： | 現貨(或電詢) | |||||
 |
|
|||||
| |
產品簡介： |
|
||||
|

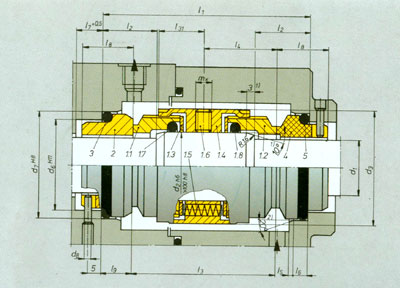

d1 |
d2 |
d3 |
d6 |
d7 |
d8 |
ds |
I1 |
I2 |
I3 |
I4 |
I5 |
I6 |
I7 |
I8 |
I9 |
I31 |
mx |
|
25 |
30 |
45 |
34.0 |
40.0 |
3 |
49 |
77.0 |
20 |
54.0 |
27.0 |
2.0 |
5 |
9.0 |
19.5 |
11.5 |
17.5 |
M6 |
|
28 |
33 |
48 |
37.0 |
43.0 |
3 |
51 |
77.0 |
20 |
54.0 |
27.0 |
2.0 |
5 |
9.0 |
19.5 |
11.5 |
17 |
M6 |
|
30 |
35 |
50 |
39.0 |
45.0 |
3 |
54 |
77.0 |
20 |
54.0 |
27.0 |
2.0 |
5 |
9.0 |
19.5 |
11.5 |
17.5 |
M6 |
|
32 |
38 |
55 |
42.0 |
48.0 |
3 |
59 |
79.0 |
20 |
56.0 |
28.0 |
2.0 |
5 |
9.0 |
19.5 |
11.5 |
18.5 |
M6 |
|
33 |
38 |
55 |
42.0 |
48.0 |
3 |
59 |
79.0 |
20 |
56.0 |
28.0 |
2.0 |
5 |
9.0 |
19.5 |
11.5 |
18.5 |
M6 |
|
35 |
40 |
57 |
44.0 |
50.0 |
3 |
61 |
80.0 |
20 |
57.0 |
28.5 |
2.0 |
5 |
9.0 |
19.5 |
11.5 |
19.0 |
M6 |
|
38 |
43 |
60 |
49.0 |
56.0 |
4 |
65 |
85.0 |
23 |
57.0 |
28.5 |
2.0 |
6 |
9.0 |
22.0 |
14.0 |
19.0 |
M6 |
|
40 |
45 |
62 |
51.0 |
58.0 |
4 |
66 |
85.0 |
23 |
57.0 |
28.5 |
2.0 |
6 |
9.0 |
22.0 |
14.0 |
19.0 |
M6 |
|
43 |
48 |
65 |
54.0 |
61.0 |
4 |
69 |
85.0 |
23 |
57.0 |
28.5 |
2.0 |
6 |
9.0 |
22.0 |
14.0 |
19.0 |
M6 |
|
45 |
50 |
67 |
56.0 |
63.0 |
4 |
71 |
84.0 |
23 |
56.0 |
28.0 |
2.0 |
6 |
9.0 |
22.0 |
14.0 |
19.5 |
M6 |
|
48 |
53 |
70 |
59.0 |
66.0 |
4 |
75 |
84.0 |
23 |
56.0 |
28.0 |
2.0 |
6 |
9.0 |
22.0 |
14.0 |
19.5 |
M6 |
|
50 |
55 |
72 |
62.0 |
70.0 |
4 |
76 |
93.0 |
25 |
63.0 |
31.5 |
2.5 |
6 |
9.0 |
23.0 |
15.0 |
19.5 |
M6 |
|
53 |
58 |
79 |
65.0 |
73.0 |
4 |
83 |
97.0 |
25 |
67.0 |
33.5 |
2.5 |
6 |
9.0 |
23.0 |
15.0 |
23.5 |
M8 |
|
55 |
60 |
81 |
67.0 |
75.0 |
4 |
85 |
97.0 |
25 |
67.0 |
33.5 |
2.5 |
6 |
9.0 |
23.0 |
15.0 |
23.5 |
M8 |
|
58 |
63 |
84 |
70.0 |
78.0 |
4 |
88 |
104.0 |
25 |
74.0 |
37.0 |
2.5 |
6 |
9.0 |
23.0 |
15.0 |
24.5 |
M8 |
|
60 |
65 |
86 |
72.0 |
80.0 |
4 |
95 |
104.0 |
25 |
74.0 |
37.0 |
2.5 |
6 |
9.0 |
23.0 |
15.0 |
24.5 |
M8 |
|
63 |
68 |
89 |
75.0 |
83.0 |
4 |
93 |
109.0 |
25 |
79.0 |
39.5 |
2.5 |
6 |
9.0 |
23.0 |
15.0 |
24.5 |
M8 |
|
65 |
70 |
91 |
77.0 |
85.0 |
4 |
95 |
98.0 |
25 |
68.0 |
34.0 |
2.5 |
6 |
9.0 |
23.0 |
15.0 |
23.5 |
M8 |
|
70 |
75 |
99 |
83.0 |
92.0 |
4 |
105 |
112.5 |
28 |
76.4 |
38.2 |
2.5 |
7 |
9.0 |
26.0 |
18.0 |
25.5 |
M8 |
|
75 |
80 |
104 |
88.0 |
97.0 |
4 |
109 |
112.5 |
28 |
76.4 |
38.2 |
2.5 |
7 |
9.0 |
26.0 |
18.0 |
25.5 |
M8 |
|
80 |
85 |
109 |
95.0 |
105.0 |
4 |
114 |
112.5 |
28 |
76.0 |
38.0 |
3.0 |
7 |
9.0 |
26.2 |
18.2 |
25.0 |
M8 |
|
85 |
90 |
114 |
100.0 |
110.0 |
4 |
119 |
112.5 |
28 |
76.0 |
38.0 |
3.0 |
7 |
9.0 |
26.2 |
18.2 |
25.5 |
M8 |
|
90 |
95 |
119 |
105.0 |
115.0 |
4 |
124 |
112.5 |
28 |
76.0 |
38.0 |
3.0 |
7 |
9.0 |
26.2 |
18.2 |
25.0 |
M8 |
|
95 |
100 |
124 |
110.0 |
120.0 |
4 |
129 |
110.5 |
28 |
76.0 |
38.0 |
3.0 |
7 |
9.0 |
25.2 |
17.2 |
25.0 |
M8 |
|
100 |
105 |
129 |
115.0 |
125.0 |
4 |
134 |
110.5 |
28 |
76.0 |
38.0 |
3.0 |
7 |
9.0 |
25.2 |
17.2 |
25.5 |
M8 |
|
105 |
115 |
148 |
122.2 |
134.3 |
5 |
153 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
110 |
120.0 |
153 |
128.2 |
140.3 |
5 |
158 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
115 |
125 |
158 |
136.2 |
148.3 |
5 |
163 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
120 |
130 |
163 |
138.2 |
150.3 |
5 |
168 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
125 |
135 |
168 |
142.2 |
154.2 |
5 |
173 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
130 |
140 |
173 |
146.2 |
158.3 |
5 |
178 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
135 |
145 |
178 |
152.2 |
164.3 |
5 |
183 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
140 |
150 |
183 |
156.2 |
168.3 |
5 |
168 |
122.0 |
32 |
82.0 |
41.0 |
2.0 |
10 |
- |
30.0 |
20.0 |
31.5 |
M8 |
|
145 |
155 |
191 |
161.2 |
173.3 |
5 |
196 |
133.0 |
34 |
93.0 |
46.5 |
2.0 |
10 |
- |
30.0 |
20.0 |
35.5 |
M8 |
|
150 |
160 |
196 |
168.2 |
180.3 |
5 |
201 |
137.0 |
36 |
93.0 |
46.5 |
2.0 |
10 |
- |
32.0 |
22.0 |
35.5 |
M8 |
|
155 |
165 |
201 |
173.2 |
185.3 |
5 |
206 |
141.0 |
38 |
93.0 |
46.5 |
2.0 |
12 |
- |
34.0 |
24.0 |
35.5 |
M8 |
|
160 |
170 |
206 |
178.2 |
190.3 |
5 |
211 |
141.0 |
38 |
93.0 |
46.5 |
2.0 |
12 |
- |
34.0 |
24.0 |
35.5 |
M8 |
|
165 |
175 |
211 |
183.2 |
195.3 |
5 |
216 |
141.0 |
38 |
93.0 |
46.5 |
2.0 |
12 |
- |
34.0 |
24.0 |
35.5 |
M8 |
|
170 |
180 |
216 |
188.2 |
200.3 |
5 |
221 |
141.0 |
38 |
93.0 |
46.5 |
2.0 |
12 |
- |
34.0 |
24.0 |
35.5 |
M8 |
|
175 |
185 |
221 |
193.2 |
205.3 |
5 |
226 |
141.0 |
38 |
93.0 |
46.5 |
2.0 |
12 |
- |
34.0 |
24.0 |
35.5 |
M8 |
|
180 |
190 |
226 |
207.5 |
219.3 |
5 |
231 |
149.0 |
42 |
93.0 |
46.5 |
2.0 |
12 |
- |
38.0 |
28.0 |
35.5 |
M8 |
|
185 |
195 |
231 |
212.5 |
224.3 |
5 |
236 |
149.0 |
42 |
93.0 |
46.5 |
2.0 |
12 |
- |
38.0 |
28.0 |
35.5 |
M8 |
|
190 |
200 |
236 |
217.5 |
229.3 |
5 |
241 |
149.0 |
42 |
93.0 |
46.5 |
2.0 |
12 |
- |
38.0 |
28.0 |
35.5 |
M8 |
|
195 |
205 |
245 |
222.5 |
234.3 |
5 |
250 |
151.0 |
43 |
95.0 |
47.5 |
2.0 |
12 |
- |
38.0 |
28.0 |
- |
M10 |
|
200 |
210 |
250 |
227.5 |
239.3 |
5 |
255 |
151.0 |
43 |
95.0 |
47.5 |
2.0 |
12 |
- |
38.0 |
28.0 |
- |
M10 |
H74D機械密封
