Q47F-900Lb美標球閥產品詳細說明：

Q47F-900Lb美標球閥

Class 900 Two-Piece Trunnion Mounted Ball Valve 球 閥
產品類別：美標閥系列

技術要求：
設計和制造：ANSI B16.34、API 608、API 6D、BS 5351
結構長度：ANSI B16.10、API 6D
法蘭連接：ANSI B16.5
防火要求：API 607、API 6FA
試驗和驗收：API 598、API 6D

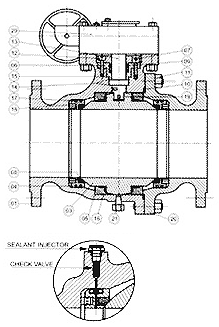

材料
	零件名稱	材料
21	泄放閥	Carbon Steel/Stainless Steel
20	蝸輪驅動裝置	Manufacturer's Standard
19	防靜電裝置	Stainless Steel
18	彈簧	17-7PH/inconel
17	O形圈	Viton
16	球體支撐座	Carbon Steel/SS
15	墊片	PTFE/NYLON
14	止推墊片	PTFE/NYLON
13	閥桿	CS+Plated/Stainless Steel

	零件名稱	WCB	LCB	WC6	WC9
12	螺母	A193 Gr B7	A320 Gr L7	A193 Gr B7	A193 Gr B16
11	螺栓螺母	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4
10	墊片	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND
09	填料	PTFE/Graphite	Graphite/PTFE	Graphite/PTFE	Graphite/PTFE
08	球座	PTFE/RPTFE	PTFE/RPTFE	PTFE/RPTFE	PTFE/RPTFE
07	密封壓蓋	A216 Gr WCB	A352 Gr LCB	A217 Gr WC9	A217 Gr WC9
06	填料壓蓋	A216 Gr WCB	A352 Gr LCB	A217 Gr WC9	A217 Gr WC9
05	球支撐座	A216 Gr WCB	A352 Gr LCB	A217 Gr WC9	A217 Gr WC9
04	閥座	A216 Gr WCB	A352 Gr LCB	A217 Gr WC9	A217 Gr WC9
03	球體	A216 Gr WCB	A352 Gr LCB	A217 Gr WC9	A217 Gr WC9
02	右閥體	A216 Gr WCB	A352 Gr LCB	A217 Gr WC9	A217 Gr WC9
01	左閥體	A216 Gr WCB	A352 Gr LCB	A217 Gr WC9	A217 Gr WC9

	零件名稱	C5	C12	CF8	CF8M
12	螺母	A193 Gr B7	A320 Gr L7	A193 Gr B8	A193 Gr B8
11	螺栓螺母	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7	A193 B8/A194 8	A193 B8M/A194 B8
10	墊片	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND	PTFE/SPIRAL WOUND
09	填料	GRAFOIL	GRAFOIL	GRAFOIL	GRAFOIL
08	球座	PTFE/RPTFE	PTFE/RPTFE	PTFE/RPTFE	PTFE/RPTFE
07	密封壓蓋	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
06	填料壓蓋	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
05	球支撐座	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
04	閥座	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
03	球體	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
02	右閥體	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
01	左閥體	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M

Class 900
Size	inch	2	21/2	3	4	6	8	10	12	14	16	18	20
L，L1-RF、BW	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321
L2-RTJ	mm	371	422	384	4600	613	740	841	968	1038	1140	1232	1334
B	mm	51	64	76	102	152	203	254	305	324	375	425	473
H	mm	210	250	285	280	360	455	510	525	595	650	685	695
K	mm	250	300	300	400	400	600	600	600	750	750	750	800
Wt.(approx)	kg	45	50	72	130	235	495	690	1050	1350	1750	2300	2850

Q47F-900Lb美標球閥
