規格 Spec

型號 Model

楔心行程
Plunger stroke
mm

爪行程直徑
Jaw stroke Dia.
mm

容許油壓缸推力
Max.D.B.Pull
kgf

最大夾持力
Max clamping force
kgf

最高轉速
Max RPM

4T-206 A5

20

9.2

17.9(1830)

52.4(5350)

5250

4T-208 A5

21

9.7

25(2550)

74.5(7600)

4750

4T-208 A6

21

9.7

25(2550)

74.5(7600)

4750

4T-210 A6

25

8.8

28.9(2950)

107.8(11000)

4000

4T-210 A8

25

8.8

28.9(2950)

107.8(11000)

4000

4T-212 A8

30

10.5

41(4180)

155.8(15900)

3000

4T-215 A11

35

16

82(8360)

248.4(25350)

3000

4T-218 A11

35

18.7

96(9687)

248.4(25350)

2000

4T-224 A15

35

18.7

82(8360)

273(27838)

1520

4T-232 A15

35

18.7

82(8360)

215(21924)

920

規格 Spec

型號 Model

夾持直徑
Chucking Dia
mm

慣性矩
I
kg*m2

重量
Weight
kg

帶法蘭重量
Weight(Ad.)
kg

適合油壓缸
Matched cylinders

最大使用壓力
Max Pressure
Mpa(kgf)

4T-206 A5

14-165

0.05

13

14

S-100

3.0(30)

4T-208 A5

17-210

0.14

24

28

S-125

2.6(25)

4T-208 A6

17-210

0.14

24

27

S-125

2.6(25)

4T-210 A6

22-254

0.3

35

42

S-125

3.0(30)

4T-210 A8

22-254

0.3

35

40

S-125

3.0(30)

4T-212 A8

22-304

0.73

59

63

S-150

3.0(30)

4T-215 A11

50-371

1.95

100

107

S-200

3.2(32)

4T-218 A11

78-450

3.5

134

140.2

S-200

3.2(32)

4T-224 A15

152-610

7.81

235

244

S-200

3.2(32)

4T-232 A15

100-810

31.2

400

416

S-200

3.2(32)

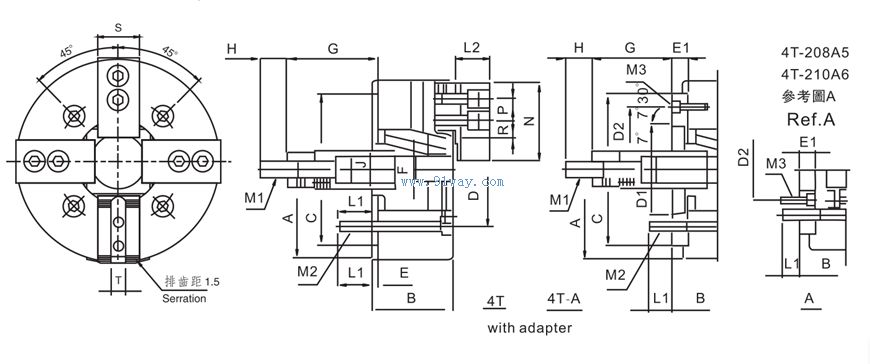

規格 Spec
型號 Model

A

B

B

C(H6)

D

D1

D2

E

E1

F

G max

G min

G max

G min

H

J

4T-206 A5

165

74

84

140

104.8

82.56

116

5

15

21

101.5

86.5

87.5

66.6

35

34

4T-208 A5

210

85

103

170

133.4

82.56

104.8

5

23

25

127

104

106

83

35

38

4T-208 A6

210

85

97

170

133.4

106.38

150

5

17

25

127

110

106

89

35

38

4T-210 A8

254

89

102

220

171.4

139.72

190

5

18

34

158

140

133

115

35

45

4T-212 A8

304

106

118

220

171.4

140.72

190

6

18

34

163

145

133

115

35

50

4T-215 A11

381

114

130

300

235

196.87

260

6

22

-

104

82

69

47

55

60

4T-218 A11

450

114

130

300

235

196.869

260

6

22

60

92

70

57

35

55

-

4T-224 A15

610

125

146

380

330.2

285.775

330.2

6

27

60

97

70

62

35

55

-

4T-232 A15

810

135

156

380

330.2

285.775

330.2

6

27

60

74

47

39

12

55

-

規格 Spec
型號 Model

L1

L1

L2

M1

M2

M3

N

P

R max

R min

S

T

4T-206 A5

14

14

39

M16×2

4-M10

4-M6

73

20

18

7.5

31

12

4T-208 A5

20

17

41

M20×2.5

4-M12

6-M10

95

25

22.3

11.8

35

14

4T-208 A6

20

18

41

M20×2.5

4-M12

4-M6

95

25

22.3

118

35

14

4T-210 A8

18

25

46

M20×2.5

4-M16

4-M8

110

30

30.8

11.3

40

16

4T-212 A8

22

25

54

M20×2.5

4-M16

4-M8

130

30

48.8

12.3

50

18

4T-215 A11

30

33

63

M30×3.5

4-M20

4-M10

165

43

48.8

23.3

62

25.5

4T-218 A11

-

28

66.5

M30×3.5

4-M20

4-M10

165

43

70.75

24.25

62

25.5

4T-224 A15

-

34

76

M30×3.5

8-M24

4-M12

180

60

93.5

24.5

65

25

4T-232 A15

-

33

97

M30×3.5

8-M24

4-M12

210

80

196.5

25.5

74

25
